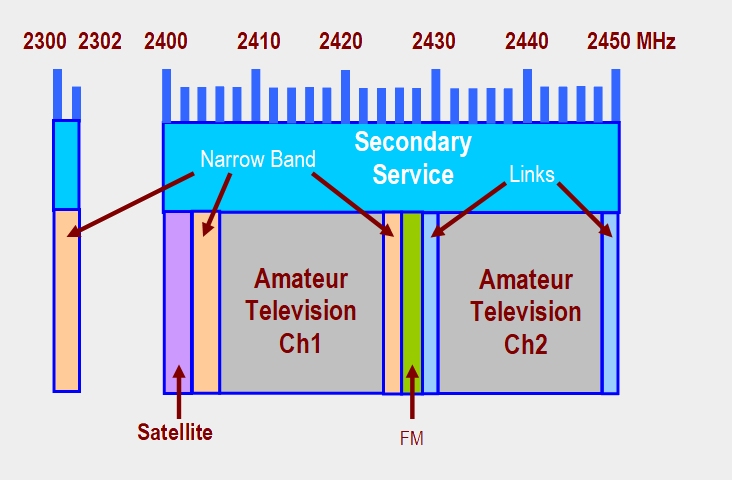

The Australian Amateur Band Plan – 13cm

The 13cm segment (2.300 -2.302 GHz) is accessible to the Advanced licence class only

The 13cm segment (2.400 -2.450 GHz) is accessible to Standard and Advanced operators

• Transmission bandwidth is not limited
• Standard operators using emission modes J3E or R3E are limited to 100 watts pX
• Standard operators using other modes are limited to 30 watts pY
• Advanced operators using emission modes J3E or R3E are limited to 400 watts pX
• Advanced operators using other modes are limited to 120 watts pY

• 2.300 – 2.302 GHZ and 2.400 – 2.450 GHz is a Secondary Amateur Allocation

• 2.300 to 2.302 GHz is available for narrow band modes
• 2.400 to 2.403 GHz is reserved for Satellite operation
• 2.403 to 2.406 GHz is available for narrow band modes
• 2.406 to 2.424 GHz is reserved for Amateur Television Channel 1 operation
• 2.424 to 2.425 GHz is available for narrow band modes
• 2.425 to 2.426 GHz is available for FM Simplex operation
• 2.426 to 2.428 GHz is available for Data modes
• 2.428.025 to 2.429.975 GHz is available for FM Duplex operation
• 2.430 to 2.448 GHz is reserved for Amateur Television Channel 2 operation
• 2.428.025 to 2.429.975 GHz is available for FM Duplex operation

More details to follow soon

---
