The Australian Amateur Band Plan – 9cm
The 9cm band is accessible to the Advanced licence class only
- Transmission bandwidth is not limited
- Advanced operators using emission modes J3E or R3E are limited to 400 watts pX
- Advanced operators using other modes are limited to 120 watts pY

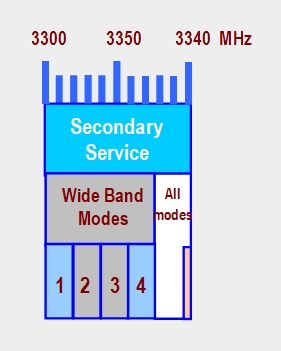

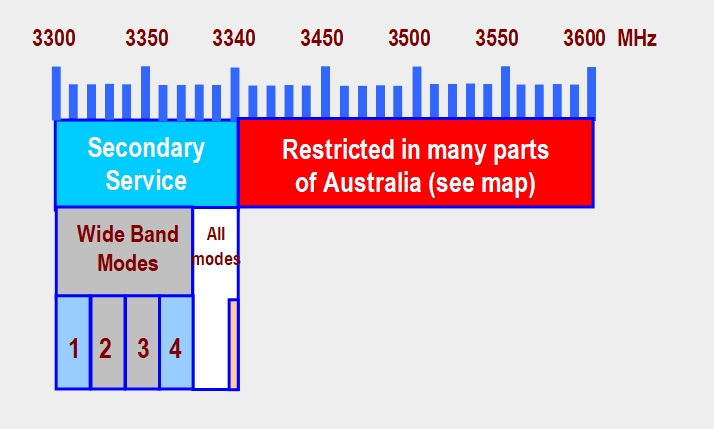

- 3.300 – 3.600 GHz is a Secondary Amateur Allocation
- 3.300 to 3.380 GHz is available for various wide band modes
- 3.380 to 3.398 GHz is available for all modes
- 3.398 to 3.400 GHz is available for narrow band modes
Additional Notes
The 2025 ACMA LCD was changed in to include a prohibition of transmitting within the frequency range of 3.400 GHz to 3.600 GHz for large parts of Australia. These areas were gazetted by way of a geographic coding system used by the ACMA called the Hierarchical Cell Identification Scheme (HCIS).

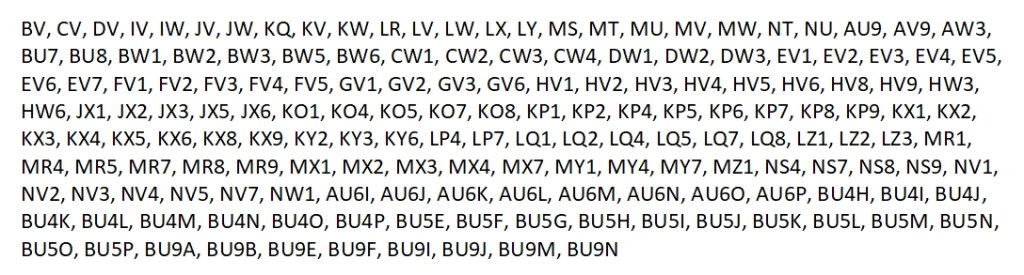

In the instance of 3.4 to 3.6 GHz the current exclusion zone codes are:

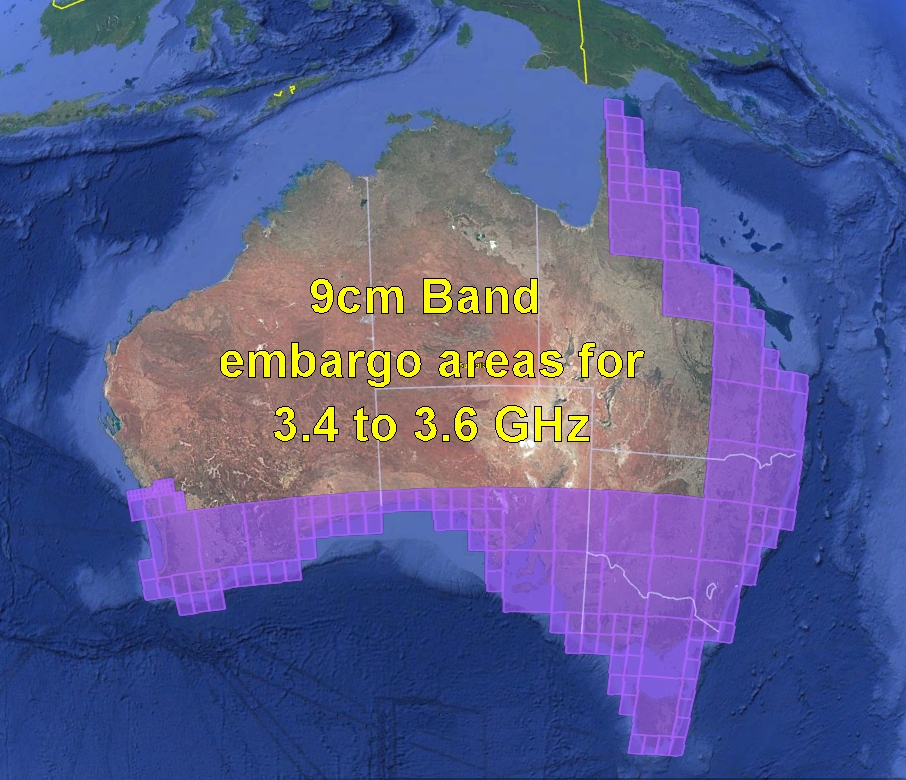

These codes may be interpreted as geographical areas with the aid of Google Earth. The geographic areas where Amateurs are not permitted to transmit in the 3.4 to 3.6 GHz frequency range are identified here in violet shaded areas.
